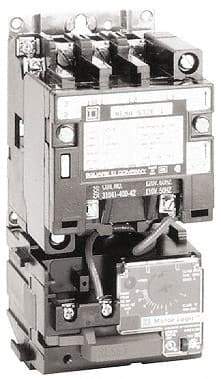

Square D - 110 Coil VAC at 50 Hz, 120 Coil VAC at 60 Hz, 135 Amp, NEMA Size 4, Nonreversible Open Enclosure NEMA Motor Starter - 3 Phase hp: 100 at 460 VAC, 100 at 575 VAC, 40 at 200 VAC, 50 at 230 VAC
Item #: 49752181
Brand: Square D
Model #: 8536SFO1V02H30S
Exact Tooling IR#: 04
Features and Benefits
Open housings are designed to disconnect the motor from the line at the time of starting or stopping of equipment. Ideal for inertial loads and they are finger safe.
Non-reversing starters are designed with one phase line that connects to and runs voltage through the motor. The starter is used to turn a motor on and off.
Open - no enclosures are starters without a protective enclosure.
| Product Specifications | |
|---|---|
| Amperage | 135 |
| NEMA Size | 4 |
| Coil Voltage | 110 VAC @ 50 Hz; 120 VAC @ 60 Hz |
| Enclosure Type | Open |
| Action | NonReversible |
| NEMA Enclosure Rating | Open - No Enclosure |
| Horsepower at 3 Phase | 100 @ 460 VAC; 100 @ 575 VAC; 40 @ 200 VAC; 50 @ 230 VAC |
| Standards Met | CSA; UL Listed |
