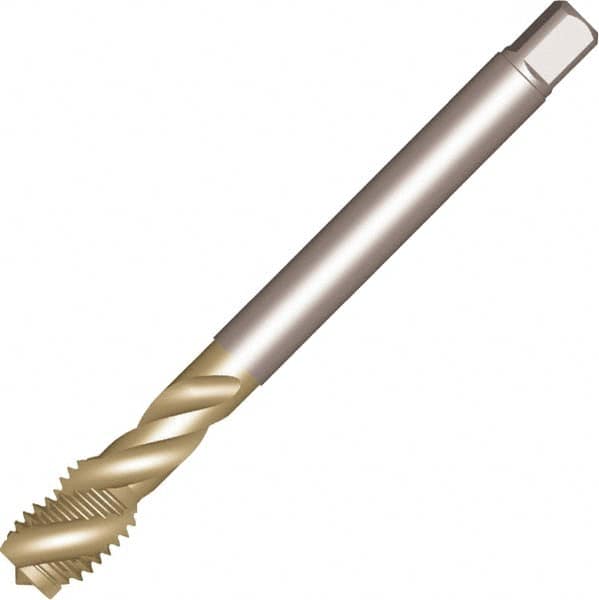

Sandvik Coromant - 3/4-16 UNF 4 Flute 3BX Spiral Flute Tap - High Speed Steel, Fe Finish, 110mm OAL, Right Hand Thread, Series CoroTap 300
Item #: 49689482
Brand: Sandvik Coromant
Model #: 6967031
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/4-16 |
| Class of Fit | 3BX |
| Number of Flutes | 4 |
| Material | High Speed Steel |
| Finish/Coating | Fe |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.9803 |
| Thread Length (mm) | 24.90 |
| Series/List | CoroTap 300 |
| Tapping Depth (Decimal Inch) | 2.4594 |
| Tapping Depth (mm) | 62.00 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Shank Diameter (mm) | 14.99 |
| Material Application | Steel; Stainless Steel; Cast Iron |
