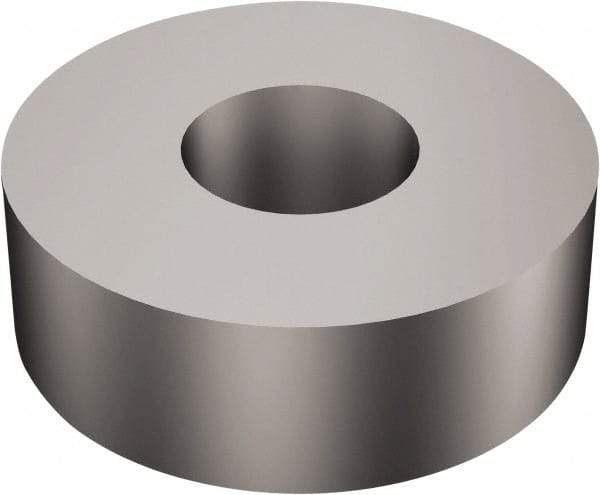

Sandvik Coromant - RNGA32 Grade CB20 CBN Turning Insert - Uncoated, Round, 3/8" Inscr Circle, 1/8" Thick, 4.7625mm Corner Radius
Item #: 49673114
Brand: Sandvik Coromant
Model #: 5741155
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | RNGA |
| Insert Size | 32 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.17 |
| Corner Radius (mm) | 4.7625 |
| Manufacturer's Grade | CB20 |
| Coating | Uncoated |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | RNGA090300S01020D CB20 |
| Relief Angle | 0 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Chamfered andRounded |
| Shape | Round |
