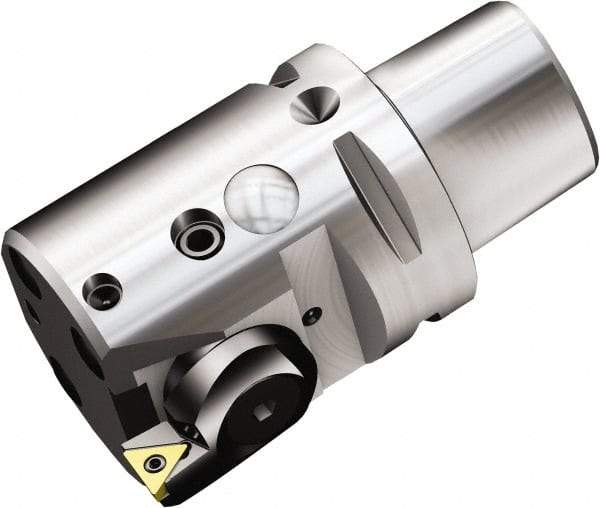

Sandvik Coromant - Right Hand Cut, 66.35mm Min Bore Diam, Size C5 Steel Modular Boring Cutting Unit Head - 2.5984" Max Bore Depth, Through Coolant, Compatible with TCMT 221, TCMT 11 03 04
Item #: 49660988
Brand: Sandvik Coromant
Model #: 6873036
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CoroBore 826 |
| Minimum Bore Diameter (mm) | 66.35 |
| Minimum Bore Diameter (Decimal Inch) | 2.6122 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 66.00 |
| Maximum Bore Depth (Decimal Inch) | 2.5984 |
| Insert Style | TCMT 221; TCMT 11 03 04 |
| Head Length/Projection (mm) | 66.00 |
| Head Length/Projection (Decimal Inch) | 2.5984 |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Connection Size | C5 |
| Maximum Bore Diameter (mm) | 67.65 |
| Maximum Bore Diameter (Decimal Inch) | 2.6634 |
| Head Diameter Excluding Insert (mm) | 50.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 1.9685 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | TCMT 11 03 04; TCMT 221 |
| Modular Connection Size | C5 |
| Includes | Adaptor; Cartridge; Key |
