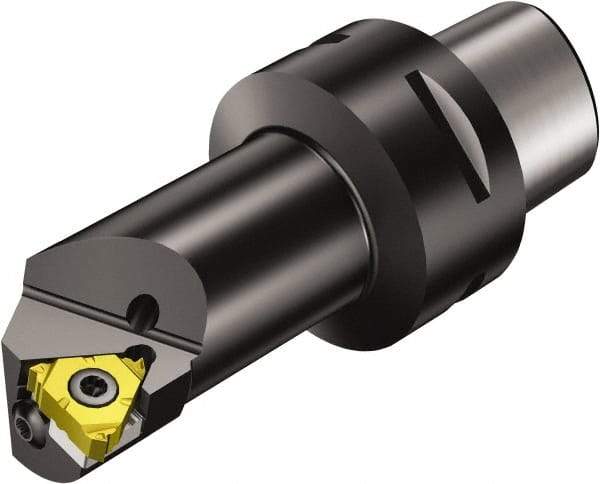

Sandvik Coromant - Insert Style 266.RL-16.., 50mm Head Length, Right Hand Cut, Internal/External Modular Threading Cutting Unit Head - System Size C3, 12mm Center to Cutting Edge, Series CoroThread 266
Item #: 49649759
Brand: Sandvik Coromant
Model #: 5961391
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | CoroThread 266 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 12.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length/Projection (mm) | 50.00 |
| Head Length/Projection (Decimal Inch) | 1.9685 |
| Insert Style | 266.RL-16.. |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 16.00 |
| Neck Diameter (Decimal Inch) | 0.629921 |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Maximum Hole Depth (mm) | 50.00 |
| Maximum Hole Depth (Decimal Inch) | 1.9685 |
