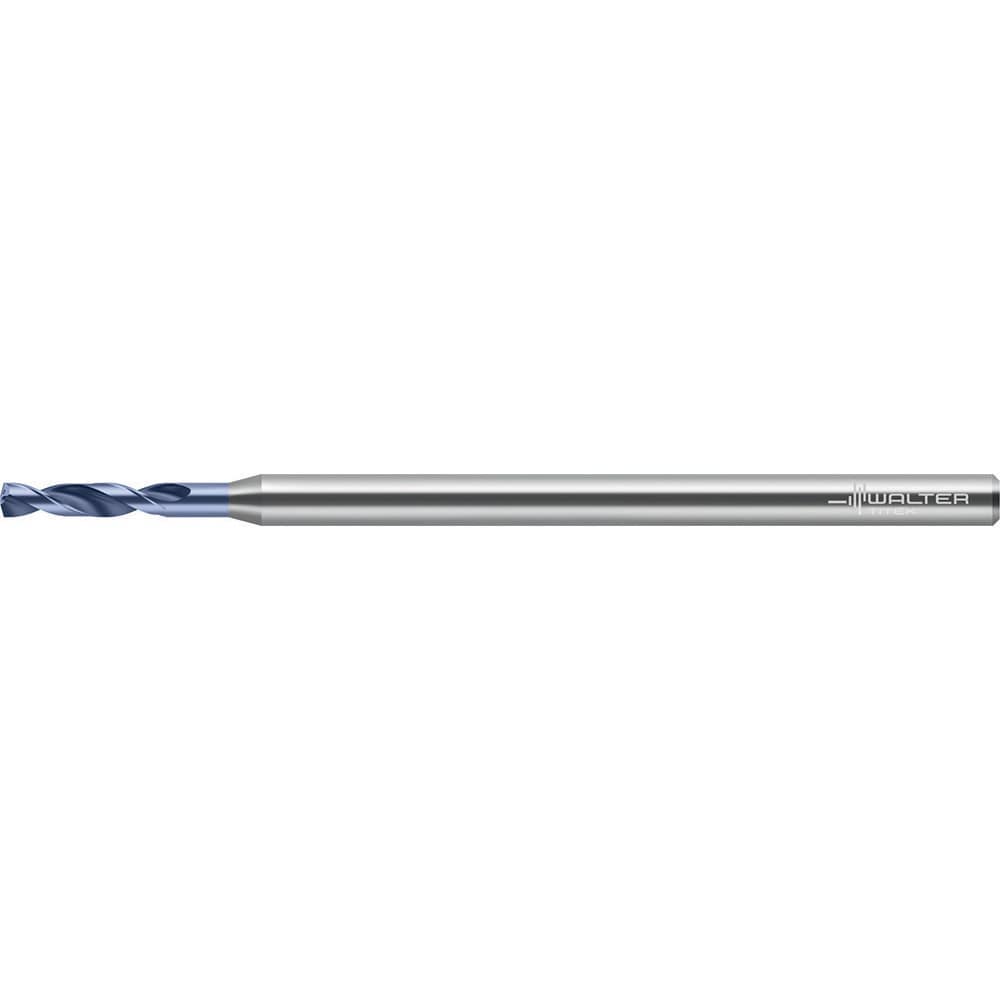

Micro Drill Bit: 2.75 mm Dia, (0.1083"), 150 deg, Solid Carbide
Item #: 40134868
Brand: Walter-Titex
Model #: 8254342
Product Specifications
| Drill Bit Size (mm) | 2.75 |
| Drill Bit Size (Decimal Inch) | 0.1083 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.5512 |
| Flute Length (mm) | 14.00 |
| Coating/Finish | AlCrN |
| Coolant Through | Yes |
| Drill Point Angle | 150 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 9.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.3543 |
| Number Of Flutes | 2 |
| Series | DB131 |
| Overall Length (Decimal Inch) | 2.4409 |
| Overall Length (mm) | 62.00 |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Tool Application | Through Hole Drilling; Blind Hole |
| Drill Bit Diameter Tolerance | p7 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.0000 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.000 |
| Flute By Diameter Ratio | 2xD |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
