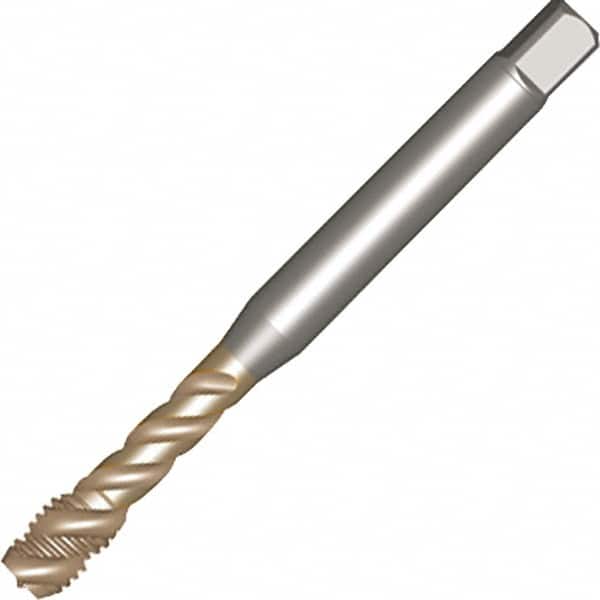

Sandvik Coromant - M20x2.50 M 4 Flute 6H Spiral Flute Tap - High Speed Steel, Fe Finish, 140mm OAL, Right Hand Thread, Series CoroTap 300
Item #: 49624554
Brand: Sandvik Coromant
Model #: 6539480
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M20x2.50 |
| Class of Fit | 6H |
| Number of Flutes | 4 |
| Material | High Speed Steel |
| Finish/Coating | Fe |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 140.00 |
| Helix Angle | 45 |
| Thread Standard | M |
| Thread Length (Decimal Inch) | 0.9843 |
| Thread Length (mm) | 25.00 |
| Series/List | CoroTap 300 |
| Tapping Depth (Decimal Inch) | 3.7402 |
| Tapping Depth (mm) | 95.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
| Material Application | Steel; Stainless Steel; Cast Iron |
