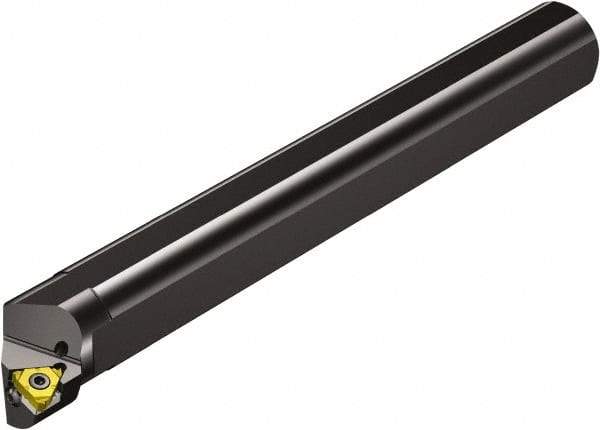

Sandvik Coromant - Left Hand Cut, 23mm Shank Width x 23mm Shank Height Indexable Threading Toolholder - 300mm OAL, 266.LL-22.. Insert Compatibility, 266R/LKF Toolholder, Series CoroThread 266
Item #: 49624059
Brand: Sandvik Coromant
Model #: 5757706
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 23.00 |
| Shank Height (mm) | 23.00 |
| Shank Height (Decimal Inch) | 0.9055 |
| Overall Length (Decimal Inch) | 11.8110 |
| Overall Length (mm) | 300.00 |
| Insert Compatibility | 266.LL-22.. |
| Series | CoroThread 266 |
| Toolholder Style | 266R/LKF |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 19.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7480 |
| Head Length (mm) | 75.00 |
| Head Length (Decimal Inch) | 2.9528 |
| Toolholder Material | Steel |
