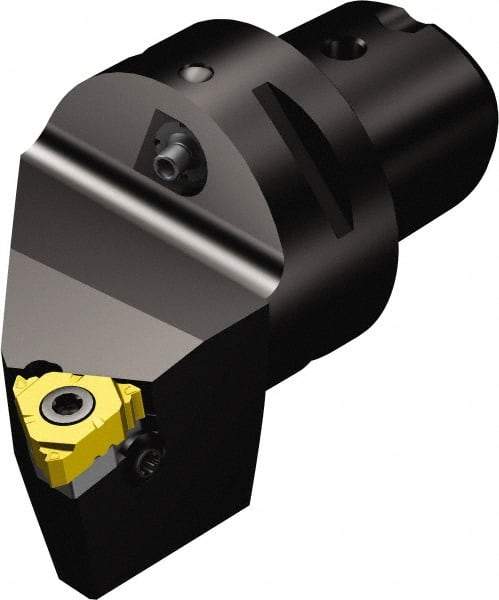

Sandvik Coromant - Insert Style 266.RG-16.., 65mm Head Length, Right Hand Cut, External/External Modular Threading Cutting Unit Head - System Size C5, 26mm Center to Cutting Edge, Series CoroThread 266
Item #: 49623879
Brand: Sandvik Coromant
Model #: 6138427
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CoroThread 266 |
| Thread Type | External/External |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 26.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0236 |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | 266.RG-16.. |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
