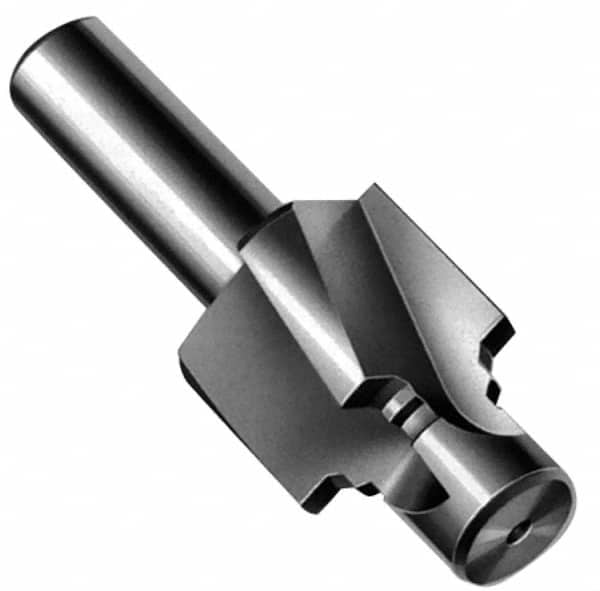

Made in USA - 5/16-24" Port, 0.742" Spotface Diam, 1/8" Tube Outside Diam, Plain Pilot, Straight Shank, High Speed Steel Porting Tool
Item #: 00389262
Brand: Made in USA
Model #:
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Port Standard Designation | AND 10050; MS 33649 |
| Pilot Type | Plain |
| Port Thread Size (Inch) | 5/16-24 |
| Tool Material | High Speed Steel |
| Tube Outside Diameter Compatibility (Inch) | 1/8 |
| Minimum Pilot Diameter (Decimal Inch) | 0.2700 (AND Spec); 0.2740 (MS Spec) |
| Spotface Diameter (Decimal Inch) | 0.7420 |
| ShankType | Straight |
| Identification Groove | No |
| Workpiece Compatibility | Tubes |
| Finish/Coating | Bright |
| Overall Length (Inch) | 3-15/32 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Thread Type | Straight |
| Number of Flutes | 3 |
| Material Application | Abrasive Materials; Ferrous Metals; Non-Ferrous Metals |
