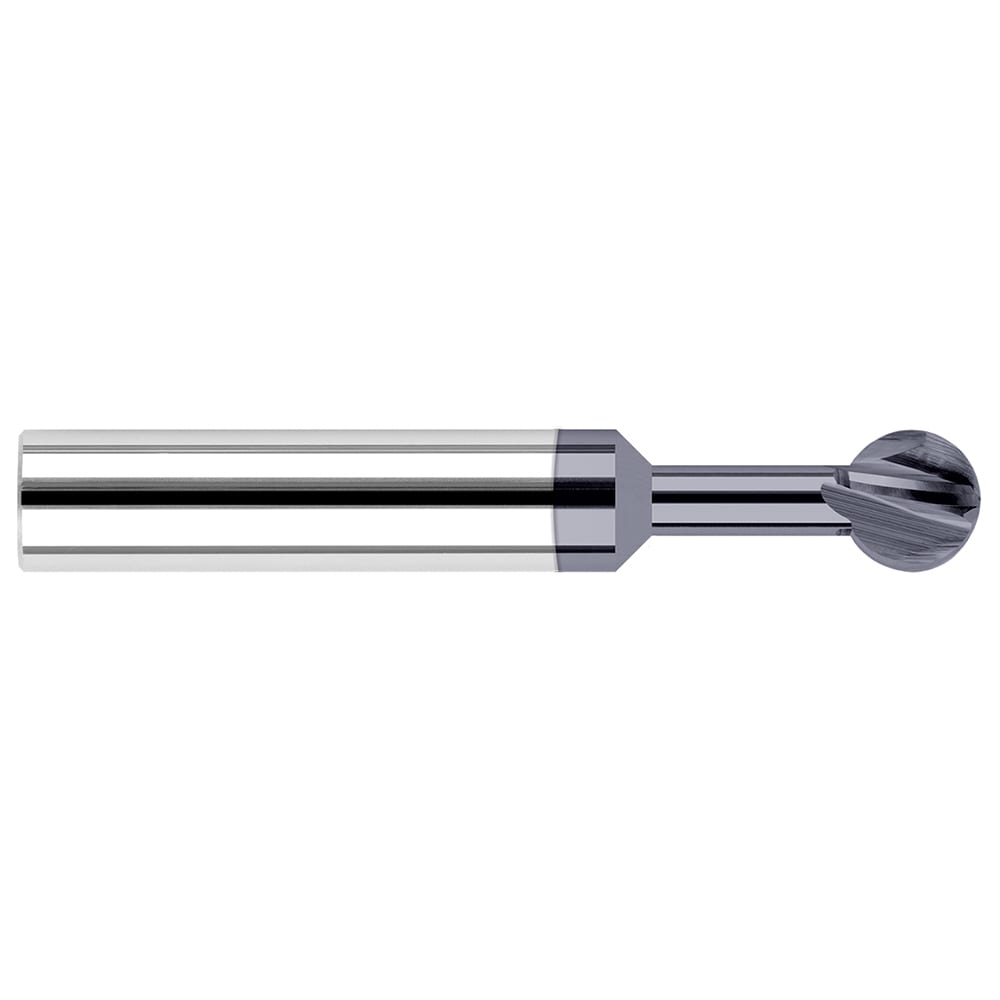

Ball End Mill: 0.1875" Dia, 0.174" LOC, 4 Flute, Solid Carbide
Item #: 50654995
Brand: Harvey Tool
Model #: 926912-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1740 |
| Overall Length (Inch) | 2 |
| Radius | 0.0938 |
| Number Of Flutes | 4 |
| Neck Length (Decimal Inch) | 0.3125 |
| Neck Diameter (Decimal Inch) | 0.0820 |
| Coating/Finish | AlTiN |
| Shank Diameter (Inch) | 3/16 |
| Variable Helix | No |
| Variable Index | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| End Mill Material | Solid Carbide |
| Wrap Angle (Degrees) | 300 |
| Single Or Double End | Single |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1740 |
| Overall Length (Inch) | 2 |
| Radius | 0.0938 |
| Number Of Flutes | 4 |
| Neck Length (Decimal Inch) | 0.3125 |
| Neck Diameter (Decimal Inch) | 0.0820 |
| Coating/Finish | AlTiN |
| Shank Diameter (Inch) | 3/16 |
| Variable Helix | No |
| Variable Index | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| End Mill Material | Solid Carbide |
| Wrap Angle (Degrees) | 300 |
| Single Or Double End | Single |
| UNSPSC Code | 27112803 |
| MSC Part # | 50654995 |
| Mfr Part # | 926912-C3 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
