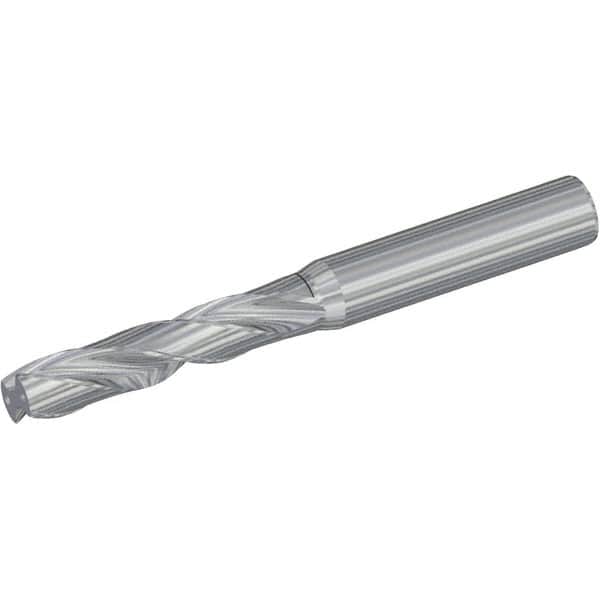

Kennametal - 9mm 180° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 76294388
Brand: Kennametal
Model #: 3885839
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN. It offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3543 |
| Drill Bit Size (mm) | 9.00 |
| Drill Point Angle | 180 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8504 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Flat-Bottom |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 35.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.3780 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 0.34 |
| Drill Point Length (Decimal Inch) | 0.0135 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.006 to +0.021 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0002 to +0.0008 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 6535 |
| Series/List | B707A-FBL |
| Length Type | Stub |
