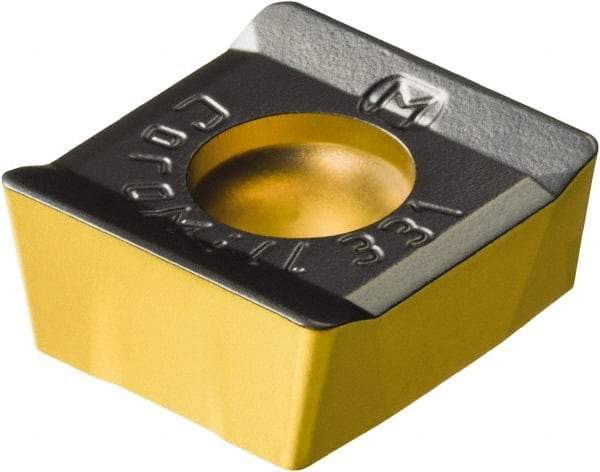

Sandvik Coromant - N331.1A043505 KM Grade 3330 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3.5mm Thick
Item #: 49544158
Brand: Sandvik Coromant
Model #: 6428076
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1A |
| Insert Size | 043505 |
| Material | Carbide |
| Manufacturer's Grade | 3330 |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 9.50 |
| Width (Decimal Inch) | 0.3740 |
| Thickness (mm) | 3.50 |
| Thickness (Decimal Inch) | 0.1378 |
| Hole Diameter (mm) | 2.60 |
| Hole Diameter (Decimal Inch) | 0.1024 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Cutting Edge Style | Rounded |
| ISO Number | N331.1A-04 35 05M-KM3330 |
