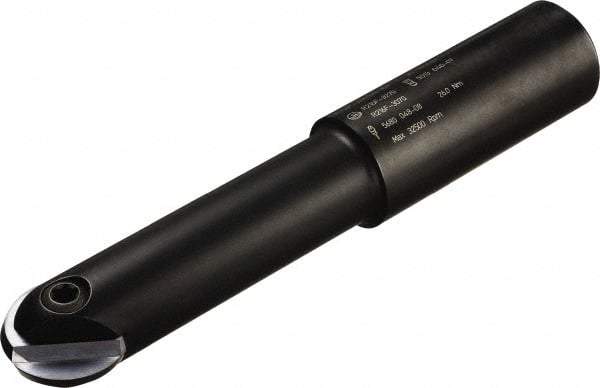

Sandvik Coromant - 8mm Cut Diam, 1.2mm Max Depth of Cut, 12mm Shank Diam, 132mm OAL, Indexable Ball Nose End Mill - 87mm Head Length, 12 Straight Shank, R216F..AxxS Toolholder
Item #: 49540271
Brand: Sandvik Coromant
Model #: 5743741
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.3149 |
| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Shank Type | Straight Shank |
| Modular Connection Thread Size | 12 |
| Shank Diameter (mm) | 12.00 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Toolholder Style | R216F..AxxS |
| Series | CoroMill 216F |
| Overall Length (mm) | 132.00 |
| Overall Length (Decimal Inch) | 5.1969 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | No |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 87.00 |
| Head Length (Decimal Inch) | 3.4252 |
| Maximum RPM | 16800 |
| Projection (mm) | 87.00 |
| Projection (Decimal Inch) | 3.4252 |
