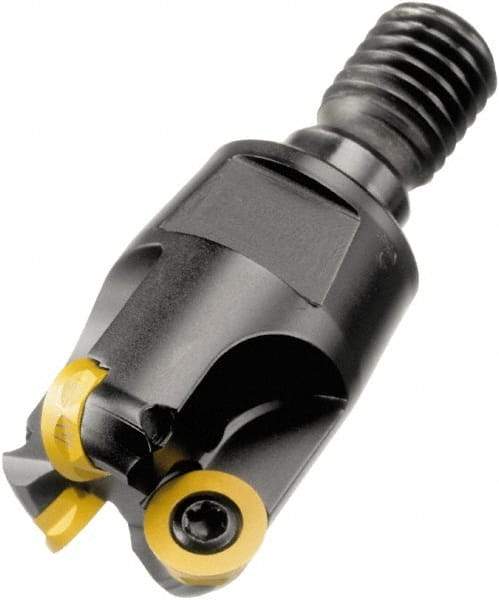

Sandvik Coromant - 20mm Cutting Diam, 5mm Max Depth of Cut, M10 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-1032.. Insert Style, R300..Txx Toolholder, Through Coolant
Item #: 49538762
Brand: Sandvik Coromant
Model #: 5744549
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 2 |
| Insert Style | R300-1032.. |
| Toolholder Style | R300..Txx |
| Overall Length (mm) | 49.50 |
| Overall Length (Decimal Inch) | 1.9488 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 10.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Maximum RPM | 1000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.787402 |
| Minimum Cutting Diameter (Decimal Inch) | 0.3937 |
| Projection (mm) | 30.00 |
| Projection (Decimal Inch) | 1.1811 |
| Modular Connection Size | M10 |
