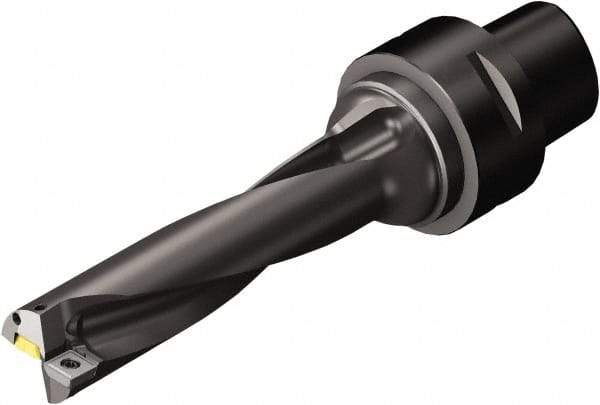

Sandvik Coromant - 107.9mm Max Drill Depth, 4xD, 26.97mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49537293
Brand: Sandvik Coromant
Model #: 6328002
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Cx-04 |
| Drill Diameter (mm) | 26.97 |
| Drill Diameter (Decimal Inch) | 1.0620 |
| Maximum Drill Depth (mm) | 107.90 |
| Maximum Drill Depth (Decimal Inch) | 4.2480 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 1.0620 |
| Maximum Drill Diameter (mm) | 26.97 |
| Overall Length/Projection (mm) | 175.79 |
| Overall Length/Projection (Decimal Inch) | 6.9209 |
| Insert Compatibility | 880-050305H-C-GM; 880-0503W05H-P-GM |
| Flute Length (mm) | 126.77 |
| Flute Length (Decimal Inch) | 4.9910 |
| Body Length (Decimal Inch) | 4.3700 |
| Body Length (mm) | 111.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.75 |
