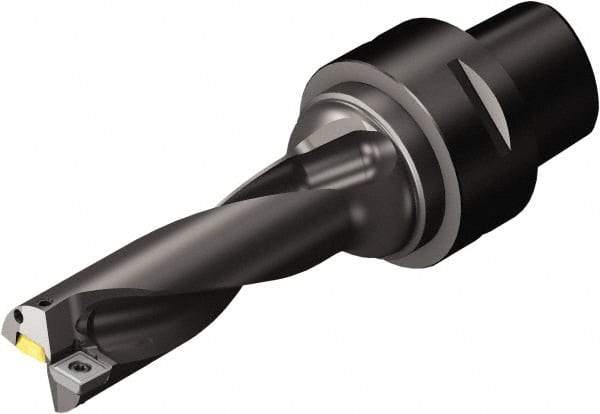

Sandvik Coromant - 42mm Max Drill Depth, 3xD, 14mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49536352
Brand: Sandvik Coromant
Model #: 5765150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..Cx-03 |
| Drill Diameter (mm) | 14.00 |
| Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Depth (mm) | 42.00 |
| Maximum Drill Depth (Decimal Inch) | 1.6535 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Diameter (mm) | 14.00 |
| Overall Length/Projection (mm) | 118.00 |
| Overall Length/Projection (Decimal Inch) | 4.6457 |
| Insert Compatibility | 880-020204H-C-GM; 880-0202W04H-P-GM |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Body Length (Decimal Inch) | 1.7716 |
| Body Length (mm) | 45.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.5 |
