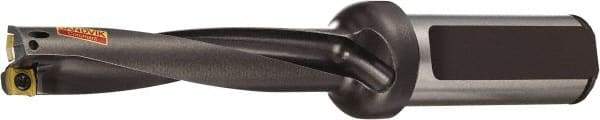

Sandvik Coromant - 78mm Max Drill Depth, 5xD, 15.5mm Diam, Indexable Insert Drill - 20mm Shank Diam, 20 Cylindrical Shank
Item #: 49534944
Brand: Sandvik Coromant
Model #: 5962244
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Lxx-05 |
| Drill Diameter (mm) | 15.50 |
| Drill Diameter (Decimal Inch) | 0.6102 |
| Maximum Drill Depth (mm) | 78.00 |
| Maximum Drill Depth (Decimal Inch) | 3.0709 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Modular Connection Size | 20 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Diameter (mm) | 20.00 |
| Overall Length/Projection (mm) | 145.00 |
| Overall Length/Projection (Decimal Inch) | 5.7087 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Body Length (Decimal Inch) | 3.1890 |
| Body Length (mm) | 81.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.75 |
