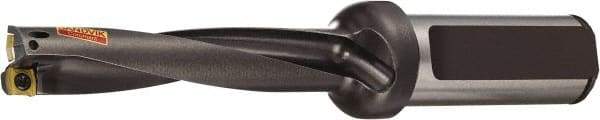

Sandvik Coromant - 110mm Max Drill Depth, 5xD, 22mm Diam, Indexable Insert Drill - 25mm Shank Diam, 25 Cylindrical Shank
Item #: 49534761
Brand: Sandvik Coromant
Model #: 5962356
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Lxx-05 |
| Drill Diameter (mm) | 22.00 |
| Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Depth (mm) | 110.00 |
| Maximum Drill Depth (Decimal Inch) | 4.3307 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Modular Connection Size | 25 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 187.00 |
| Overall Length/Projection (Decimal Inch) | 7.3622 |
| Insert Compatibility | 881-04 03 08M-C-GM1; 881-04 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 4.4488 |
| Body Length (mm) | 113.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.25 |
