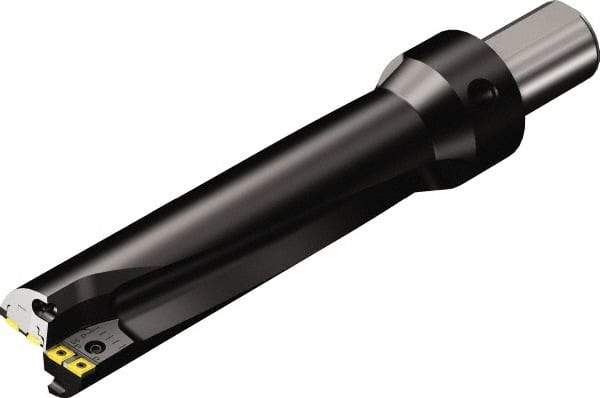

Sandvik Coromant - 276mm Max Drill Depth, 4xD, 67mm Diam, Indexable Insert Drill - 2 Inserts, 50mm Shank Diam, 50 Cylindrical Shank
Item #: 49534357
Brand: Sandvik Coromant
Model #: 6660399
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880-D..Lxx-04 |
| Drill Diameter (mm) | 67.00 |
| Drill Diameter (Decimal Inch) | 2.6378 |
| Maximum Drill Depth (mm) | 276.00 |
| Maximum Drill Depth (Decimal Inch) | 10.8661 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | 50 |
| Cutting Direction | 880-0604W06H-P-GM |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.4800 |
| Maximum Drill Diameter (mm) | 63.00 |
| Overall Length/Projection (mm) | 426.00 |
| Overall Length/Projection (Decimal Inch) | 16.7717 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Body Length (Decimal Inch) | 11.0933 |
| Body Length (mm) | 282.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0 |
