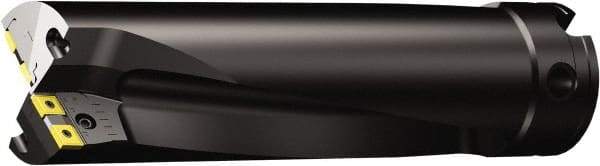

Sandvik Coromant - 296mm Max Drill Depth, 4xD, 71mm Diam, Indexable Insert Drill - 2 Inserts, 80 Varilock Shank
Item #: 49534142
Brand: Sandvik Coromant
Model #: 6770891
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880-D..Vxx-03 |
| Drill Diameter (mm) | 71.00 |
| Drill Diameter (Decimal Inch) | 2.7953 |
| Maximum Drill Depth (mm) | 296.00 |
| Maximum Drill Depth (Decimal Inch) | 11.6535 |
| Shank Type | Varilock |
| Modular Connection Size | 80 |
| Cutting Direction | 880-0604W06H-P-GM |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.6770 |
| Maximum Drill Diameter (mm) | 68.00 |
| Overall Length/Projection (mm) | 394.00 |
| Overall Length/Projection (Decimal Inch) | 15.5118 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Body Length (Decimal Inch) | 12.7413 |
| Body Length (mm) | 324.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0 |
