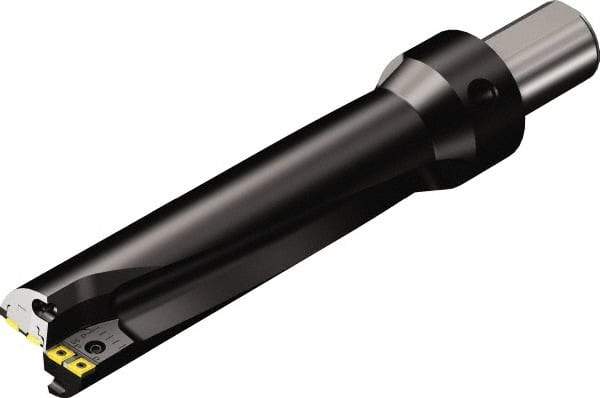

Sandvik Coromant - 316mm Max Drill Depth, 4xD, 77mm Diam, Indexable Insert Drill - 2 Inserts, 50.8mm Shank Diam, 2 Cylindrical Shank
Item #: 49533953
Brand: Sandvik Coromant
Model #: 6660453
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880-D..LXxx-04 |
| Drill Diameter (mm) | 77.00 |
| Drill Diameter (Decimal Inch) | 3.0315 |
| Maximum Drill Depth (mm) | 316.00 |
| Maximum Drill Depth (Decimal Inch) | 12.4409 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Modular Connection Size | 2 |
| Cutting Direction | 880-0704W06H-P-GM |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.8740 |
| Maximum Drill Diameter (mm) | 73.00 |
| Overall Length/Projection (mm) | 466.00 |
| Overall Length/Projection (Decimal Inch) | 18.3465 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Body Length (Decimal Inch) | 13.1555 |
| Body Length (mm) | 334.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0 |
