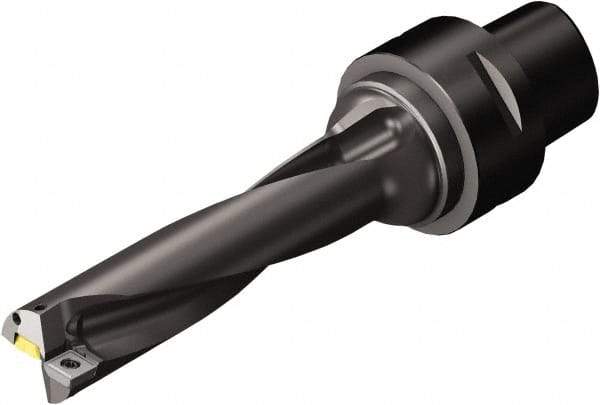

Sandvik Coromant - 62mm Max Drill Depth, 4xD, 15.5mm Diam, Indexable Insert Drill - C6 Coromant Shank
Item #: 49533680
Brand: Sandvik Coromant
Model #: 5765071
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..Cx-04 |
| Drill Diameter (mm) | 15.50 |
| Drill Diameter (Decimal Inch) | 0.6102 |
| Maximum Drill Depth (mm) | 62.00 |
| Maximum Drill Depth (Decimal Inch) | 2.4409 |
| Shank Type | Coromant |
| Modular Connection Size | C6 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.6100 |
| Maximum Drill Diameter (mm) | 15.50 |
| Overall Length/Projection (mm) | 139.00 |
| Overall Length/Projection (Decimal Inch) | 5.4724 |
| Insert Compatibility | 880-020204H-C-GM; 880-0202W04H-P-GM |
| Flute Length (mm) | 73.90 |
| Flute Length (Decimal Inch) | 2.9095 |
| Body Length (Decimal Inch) | 2.5591 |
| Body Length (mm) | 65.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.3 |
