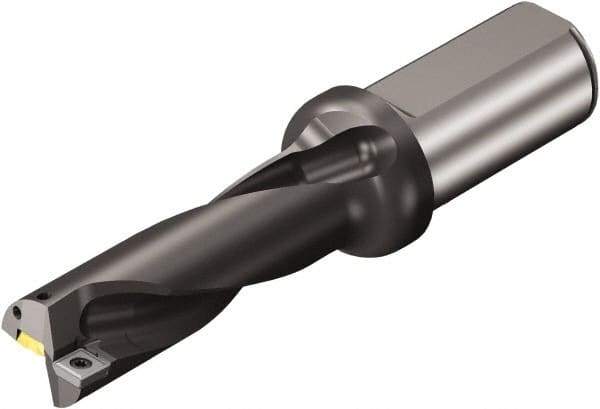

Sandvik Coromant - 63mm Max Drill Depth, 3xD, 20.9mm Diam, Indexable Insert Drill - 25mm Shank Diam, 25 Cylindrical Shank
Item #: 49533615
Brand: Sandvik Coromant
Model #: 5765376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-03 |
| Drill Diameter (mm) | 20.90 |
| Drill Diameter (Decimal Inch) | 0.8228 |
| Maximum Drill Depth (mm) | 63.00 |
| Maximum Drill Depth (Decimal Inch) | 2.4803 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Modular Connection Size | 25 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 140.00 |
| Overall Length/Projection (Decimal Inch) | 5.5118 |
| Insert Compatibility | 880-040305H-C-GM; 880-0403W05H-P-GM |
| Flute Length (mm) | 78.14 |
| Flute Length (Decimal Inch) | 3.0764 |
| Body Length (Decimal Inch) | 2.5984 |
| Body Length (mm) | 66.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.8 |
