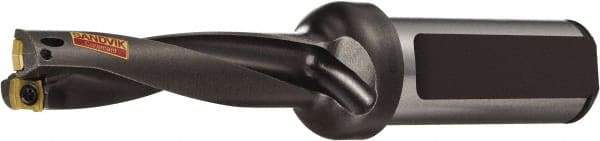

Sandvik Coromant - 84mm Max Drill Depth, 4xD, 21mm Diam, Indexable Insert Drill - 25mm Shank Diam, 25 Cylindrical Shank
Item #: 49532906
Brand: Sandvik Coromant
Model #: 5962344
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Lxx-04 |
| Drill Diameter (mm) | 21.00 |
| Drill Diameter (Decimal Inch) | 0.8268 |
| Maximum Drill Depth (mm) | 84.00 |
| Maximum Drill Depth (Decimal Inch) | 3.3071 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Modular Connection Size | 25 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 161.00 |
| Overall Length/Projection (Decimal Inch) | 6.3386 |
| Insert Compatibility | 881-04 03 08M-C-GM1; 881-04 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 3.4252 |
| Body Length (mm) | 87.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.5 |
