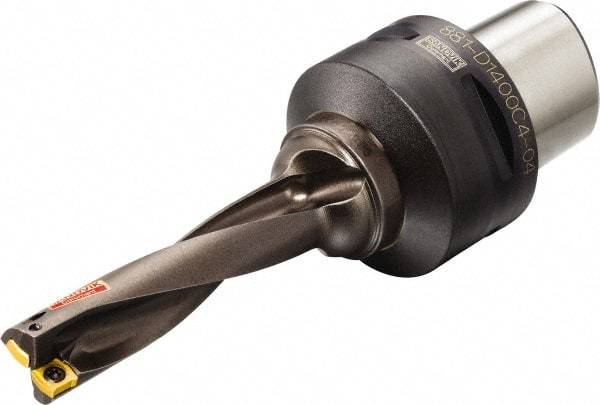

Sandvik Coromant - 88mm Max Drill Depth, 4xD, 22mm Diam, Indexable Insert Drill - C4 Coromant Shank
Item #: 49532880
Brand: Sandvik Coromant
Model #: 5962348
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 881..Cx-04 |
| Drill Diameter (mm) | 22.00 |
| Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Depth (mm) | 88.00 |
| Maximum Drill Depth (Decimal Inch) | 3.4646 |
| Shank Type | Coromant |
| Modular Connection Size | C4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.8660 |
| Maximum Drill Diameter (mm) | 22.00 |
| Overall Length/Projection (mm) | 163.00 |
| Overall Length/Projection (Decimal Inch) | 6.4173 |
| Insert Compatibility | 881-04 03 08M-C-GM1; 881-04 03 08M-P-GM1 |
| Body Length (Decimal Inch) | 3.5827 |
| Body Length (mm) | 91.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.25 |
