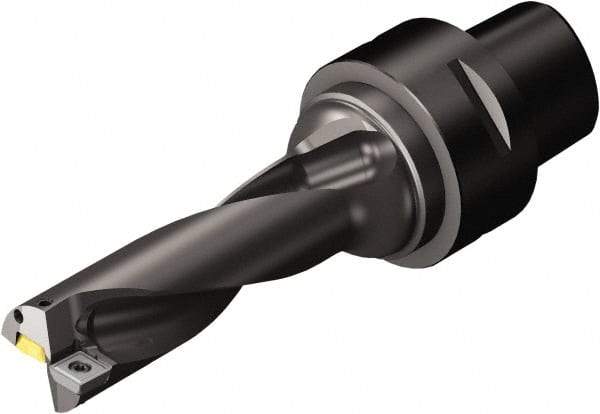

Sandvik Coromant - 66.67mm Max Drill Depth, 3xD, 22.23mm Diam, Indexable Insert Drill - C5 Coromant Shank
Item #: 49532633
Brand: Sandvik Coromant
Model #: 6328023
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..Cx-03 |
| Drill Diameter (mm) | 22.23 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (mm) | 66.67 |
| Maximum Drill Depth (Decimal Inch) | 2.6250 |
| Shank Type | Coromant |
| Modular Connection Size | C5 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Diameter (mm) | 22.23 |
| Overall Length/Projection (mm) | 137.95 |
| Overall Length/Projection (Decimal Inch) | 5.4311 |
| Insert Compatibility | 880-040305H-C-GM; 880-0403W05H-P-GM |
| Flute Length (mm) | 82.93 |
| Flute Length (Decimal Inch) | 3.2650 |
| Body Length (Decimal Inch) | 2.7560 |
| Body Length (mm) | 70.00 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.58 |
