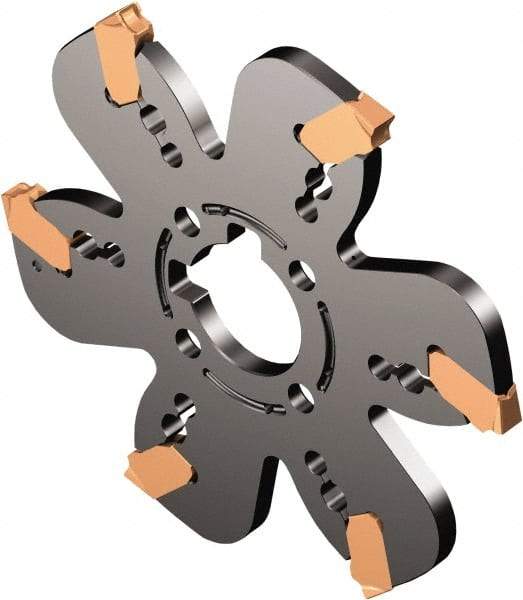

Sandvik Coromant - 0.1969" Cutting Width, 1.2205" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, Indexable Slotting Cutter - 1.2598" Shank Diam, QD..X..C Toolholder, Right Hand Cutting Direction
Item #: 49529498
Brand: Sandvik Coromant
Model #: 6657469
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Cutting Width (Decimal Inch) | 0.19685 |
| Cutting Width (mm) | 5 |
| Maximum Depth of Cut (mm) | 31.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2205 |
| Maximum Depth of Cut (Decimal Inch) | 1.2205 |
| Maximum Depth of Cut (mm) | 31 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Inch) | 1.2598 |
| Modular Connection Size | X32 |
| Toolholder Style | QD..X..C |
| Series | CoroMill QD |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 3400 |
| Maximum RPM | 3400 |
| Through Coolant | Yes |
| Complete Insert Compatibility1 | QD-NJ-0500-030E-PM |
| Overall Height (mm) | 4.65 |
| Overall Height (Decimal Inch) | 0.1831 |
