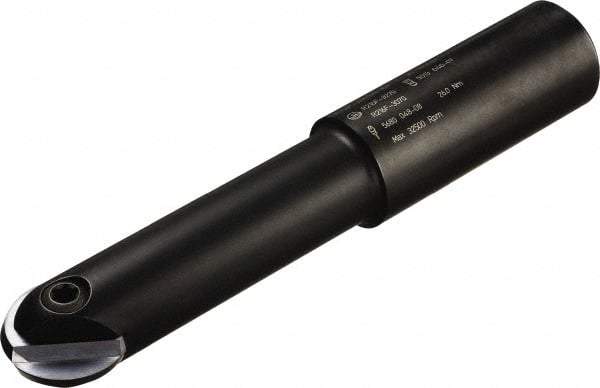

Sandvik Coromant - 20mm Cut Diam, 3mm Max Depth of Cut, 25mm Shank Diam, 191mm OAL, Indexable Ball Nose End Mill - 135mm Head Length, 25 Straight Shank, R216F..AxxC Toolholder
Item #: 49529233
Brand: Sandvik Coromant
Model #: 5743792
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Shank Type | Straight Shank |
| Modular Connection Thread Size | 25 |
| Shank Diameter (mm) | 25.00 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Toolholder Style | R216F..AxxC |
| Series | CoroMill 216F |
| Overall Length (mm) | 191.00 |
| Overall Length (Decimal Inch) | 7.5197 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | No |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 135.00 |
| Head Length (Decimal Inch) | 5.3150 |
| Maximum RPM | 18500 |
| Projection (mm) | 135.00 |
| Projection (Decimal Inch) | 5.3150 |
