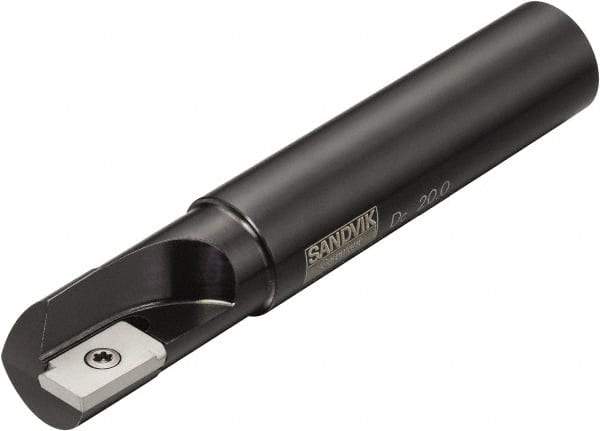

Sandvik Coromant - 2 Inserts, 32mm Cut Diam, 32mm Arbor Diam, 15mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 130mm High, R216.2-07T3 Insert Compatibility, Series U-Max
Item #: 49528599
Brand: Sandvik Coromant
Model #: 5742865
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 130.00 |
| Overall Height (Decimal Inch) | 5.1181 |
| Insert Compatibility | R216.2-07T3 |
| Series | U-Max |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | R216.2 |
| Maximum RPM | 9460 |
| ISO Number | R216.2-032 |
| Complete Insert Compatibility | R216.2-07T3 |
| Toolholder Material | Steel |
