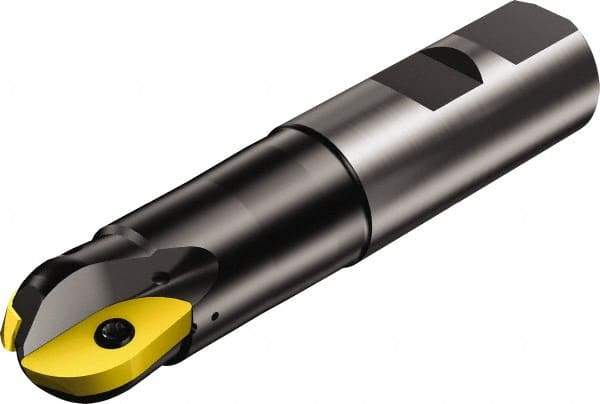

Sandvik Coromant - 16mm Cut Diam, 14.4mm Max Depth of Cut, 20mm Shank Diam, 91mm OAL, Indexable Ball Nose End Mill - 41mm Head Length, 20 Weldon Flat Shank, R216..Bxx Toolholder
Item #: 49528425
Brand: Sandvik Coromant
Model #: 5743542
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 14.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.5669 |
| Shank Type | Weldon Flat |
| Modular Connection Thread Size | 20 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Toolholder Style | R216..Bxx |
| Series | CoroMill 216 |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 41.00 |
| Head Length (Decimal Inch) | 1.6142 |
| Maximum RPM | 20000 |
| Projection (mm) | 41.00 |
| Projection (Decimal Inch) | 1.6142 |
