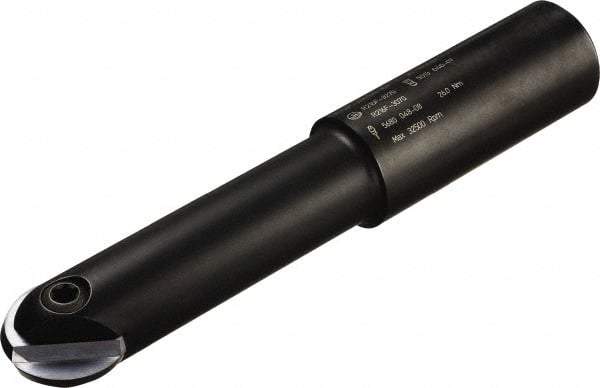

Sandvik Coromant - 16mm Cut Diam, 2.4mm Max Depth of Cut, 16mm Shank Diam, 123mm OAL, Indexable Ball Nose End Mill - 75mm Head Length, 16 Straight Shank, R216F..AxxS Toolholder
Item #: 49528334
Brand: Sandvik Coromant
Model #: 5743708
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 2.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Shank Type | Straight Shank |
| Modular Connection Thread Size | 16 |
| Shank Diameter (mm) | 16.00 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Toolholder Style | R216F..AxxS |
| Series | CoroMill 216F |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8425 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | No |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 75.00 |
| Head Length (Decimal Inch) | 2.9528 |
| Maximum RPM | 36000 |
| Projection (mm) | 75.00 |
| Projection (Decimal Inch) | 2.9528 |
