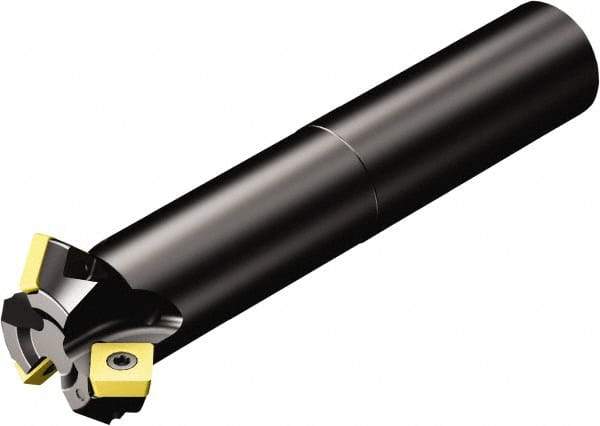

Sandvik Coromant - Indexable Chamfer & Angle End Mills Cutting Diameter (mm): 25.5 Cutting Diameter (Decimal Inch): 1.0039
Item #: 49528292
Brand: Sandvik Coromant
Model #: 6536279
Exact Tooling IR#: 04
Product Specifications
Indexable Chamfer & Angle End Mills; Cutting Diameter (mm): 25.5 ; Cutting Diameter (Decimal Inch): 1.0039 ; Maximum Cutting Diameter (mm): 29.70 ; Maximum Cutting Diameter (Decimal Inch): 1.1694 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.00
| Cutting Diameter (mm) | 25.5 |
| Cutting Diameter (Decimal Inch) | 1.0039 |
| Maximum Cutting Diameter (mm) | 29.70 |
| Maximum Cutting Diameter (Decimal Inch) | 1.1694 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.984252 |
| Lead Angle | 75 |
| Included Angle | 15 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Style | 495-09T3M-XL |
| Series | CoroMill 495 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3041 |
| Maximum Depth of Cut (mm) | 7.72 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw or Clamp |
| Toolholder Style | 495..Axx |
| Number of Flutes | 3 |
| Head Length (mm) | 63.00 |
| Head Length (Decimal Inch) | 2.4803 |
| Maximum RPM | 8100 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 495-09T3M-XL |
