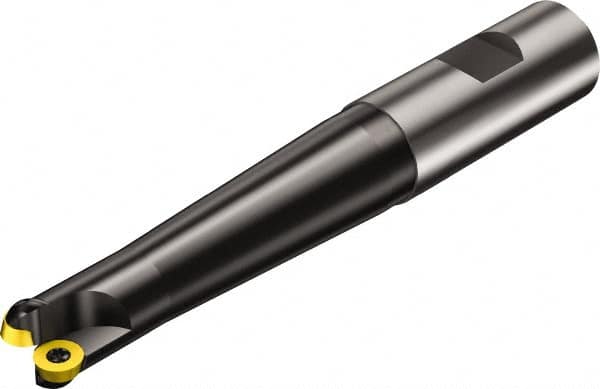

Sandvik Coromant - 25mm Cutting Diam, 6mm Max Depth of Cut, 32mm Diam Weldon Shank, Indexable Copy End Mill - Screw Holding Method, R300-1240.. Insert Style, R300..Bxx Toolholder
Item #: 49525942
Brand: Sandvik Coromant
Model #: 5744267
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Cutter Inserts | 2 |
| Insert Style | R300-1240.. |
| Toolholder Style | R300..Bxx |
| Overall Length (mm) | 141.00 |
| Overall Length (Decimal Inch) | 5.5512 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 13.00 |
| Head Length (Decimal Inch) | 3.1890 |
| Maximum RPM | 20200 |
| Maximum Cutting Diameter (Decimal Inch) | 0.984252 |
| Minimum Cutting Diameter (Decimal Inch) | 0.5118 |
| Projection (mm) | 81.00 |
| Projection (Decimal Inch) | 3.1890 |
