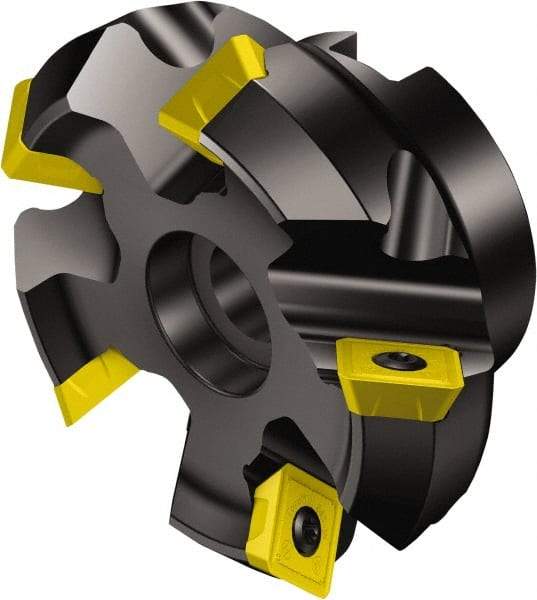

Sandvik Coromant - 125mm Cut Diam, 40mm Arbor Hole, 10mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, R245-18T6.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 49522600
Brand: Sandvik Coromant
Model #: 5743952
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 45 |
| Overall Height (mm) | 63 |
| Insert Compatibility | R245-18T6.. |
| Series | CoroMill 245 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.393701 |
| Number of Cutter Inserts | 7 |
| Cutter Style | R245..Qxx |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum RPM | 4900 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-18T6.. |
| Toolholder Material | Steel |
| Complete Insert Compatibility | R245-18T6.. |
| Maximum RPM | 4900 |
| Toolholder Material | Steel |
| Through Coolant | No |
