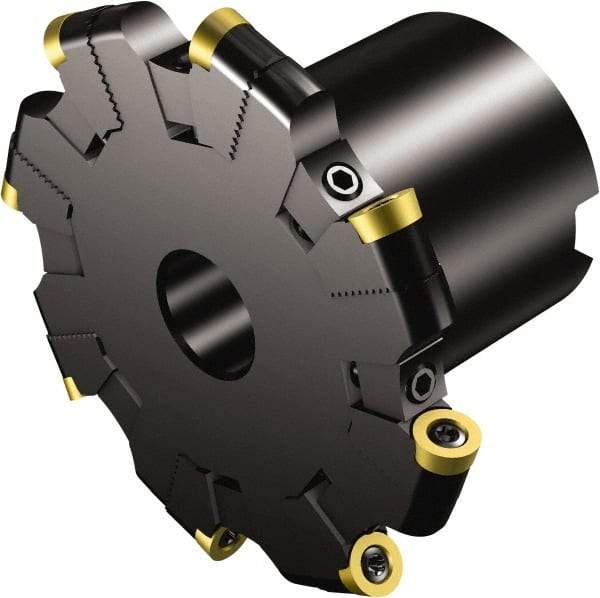

Sandvik Coromant - 1.5 Connection, 0.3937" Cutting Width, 2.106" Depth of Cut, 1-1/2" Hole Diam, 16 Tooth Indexable Slotting Cutter - R331.32..Rxx..MQ Toolholder, RCKT 09 T3 00 Insert, Right Hand Cutting Direction
Item #: 49522089
Brand: Sandvik Coromant
Model #: 5744864
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 1.5 |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Cutting Width (Decimal Inch) | 0.393701 |
| Cutting Width (mm) | 10 |
| Maximum Depth of Cut (mm) | 53.49 |
| Maximum Depth of Cut (Decimal Inch) | 2.1060 |
| Maximum Depth of Cut (Decimal Inch) | 2.106 |
| Maximum Depth of Cut (mm) | 53.49 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Modular Connection Size | 1.5 |
| Number of Teeth | 16 |
| Toolholder Style | R331.32..Rxx..MQ |
| Series | CoroMill 331 |
| Insert Style | RCKT 09 T3 00 |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 11000 |
| Maximum RPM | 11000 |
| Hub Diameter (mm) | 96.01 |
| Hub Diameter (Decimal Inch) | 3.7800 |
| Hub Diameter (mm) | 96.01 |
| Hub Diameter (Decimal Inch) | 3.7800 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Keyway Width (mm) | 16.08 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Through Coolant | No |
| Complete Insert Compatibility1 | RCKT 09 T3 00 |
