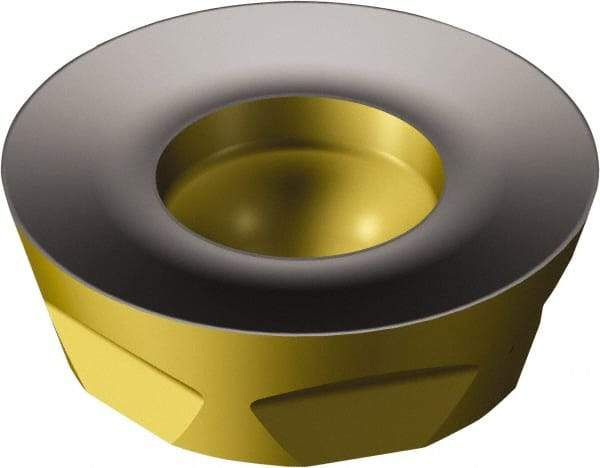

Sandvik Coromant - R3002570 KH Grade 3330 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 7.94mm Thick, 25.4mm Inscribed Circle
Item #: 49519325
Brand: Sandvik Coromant
Model #: 6428039
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R300 |
| Insert Size | 2570 |
| Material | Carbide |
| Manufacturer's Grade | 3330 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Thickness (mm) | 7.94 |
| Thickness (Decimal Inch) | 0.3126 |
| Hole Diameter (mm) | 7.60 |
| Hole Diameter (Decimal Inch) | 0.2992 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | KH |
| Maximum Depth of Cut (mm) | 3.72 |
| Maximum Depth of Cut (Decimal Inch) | 0.1465 |
| Cutting Edge Style | Rounded |
| ISO Number | R300-2570M-KH 3330 |
