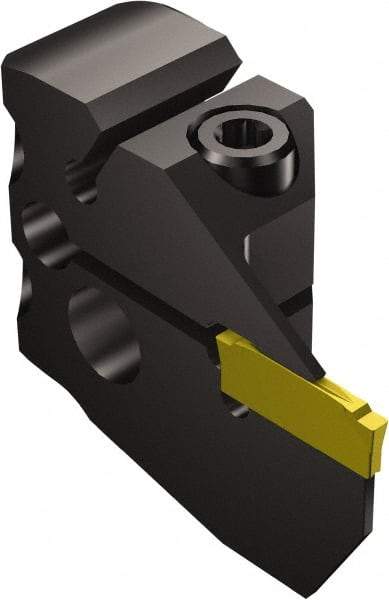

Sandvik Coromant - N123D2-0150-0002-CM Insert, 14mm Head Length, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size 25, Through Coolant, Series CoroCut 1-2 Head for Grooving
Item #: 49514318
Brand: Sandvik Coromant
Model #: 5764446
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 25 |
| Series Name | CoroCut 1-2 Head for Grooving |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Insert Style | N123D2-0150-0002-CM |
| Head Length/Projection (mm) | 14.00 |
| Head Length/Projection (Decimal Inch) | 0.5512 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 30.85 |
| Center to Cutting Edge (Decimal Inch) | 1.2146 |
| Minimum Hole Diameter (mm) | 145.00 |
| Minimum Hole Diameter (Decimal Inch) | 5.7087 |
| Complete Insert Compatibility | N123D2-0150-0002-CM |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
