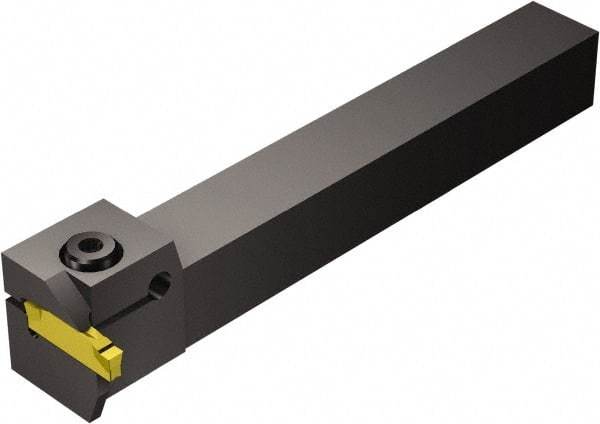

Sandvik Coromant - R/LG123..C, Right Hand, Indexable Grooving Tool Holder - N123K2-0600-0004-TF Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 49509987
Brand: Sandvik Coromant
Model #: 5963090
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | R/LG123..C |
| Insert Compatibility | N123K2-0600-0004-TF |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | K |
| Maximum Hole Depth (Decimal Inch) | 1.9291 |
| Maximum Bore Depth (Decimal Inch) | 1.9291 |
| igrvh Maximum Bore Depth (mm) | 49.00 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (mm) | 30.00 |
| Center to Cutting Edge (Decimal Inch) | 1.1811 |
| Head Length (mm) | 49.00 |
| Head Length (Decimal Inch) | 1.9291 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123K2-0600-0004-TF |
