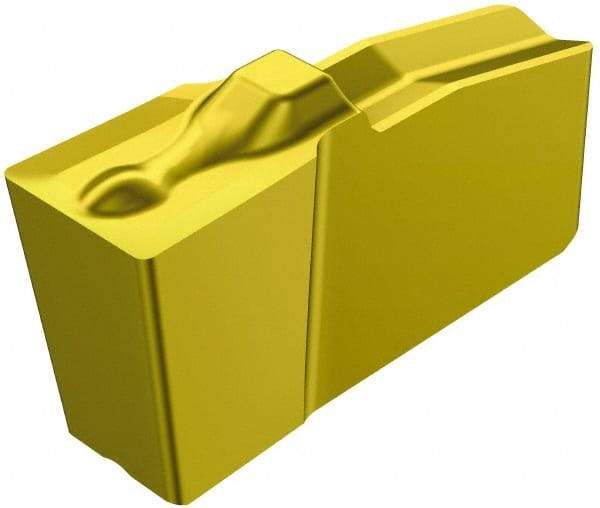

Sandvik Coromant - 40N151.2 4G Grade 1005, 5mm Cutting Width Carbide Grooving Insert - Neutral, TiAlN/TiN Finish
Item #: 49509664
Brand: Sandvik Coromant
Model #: 5737237
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 40 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 1005 |
| Coating | TiAlN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.11 |
| Cutting Height (Decimal Inch) | 0.3191 |
| Relief Angle | 7 |
| Insert Seat Size | 40 |
| Chipbreaker | 4G |
| Coating Process | PVD |
| Overall Length (mm) | 6.87 |
| Overall Length (Decimal Inch) | 0.2705 |
| Series | T-Max Q-Cut |
| ISO Number | N151.2-500-40-4G 1005 |
| Insert Thickness (Decimal Inch) | 0.3191 |
