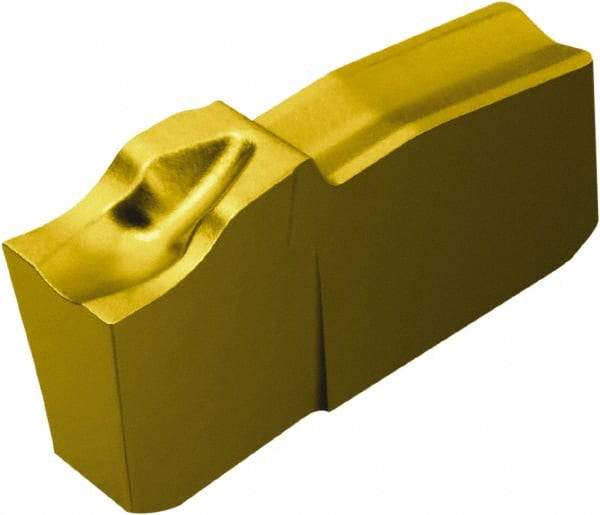

Sandvik Coromant - R151.220 5F Grade 2135, 2mm Cutting Width Carbide Cutoff Insert - 0.1mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 49509466
Brand: Sandvik Coromant
Model #: 5741729
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | R151.2 |
| Insert Size | 20 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Series | T-Max Q-Cut |
| Relief Angle | 7 |
| Chipbreaker | 5F |
| Coating Process | CVD |
| Corner Radius (Decimal Inch) | 0.003937 |
| Corner Radius (mm) | 0.1 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | 20 |
