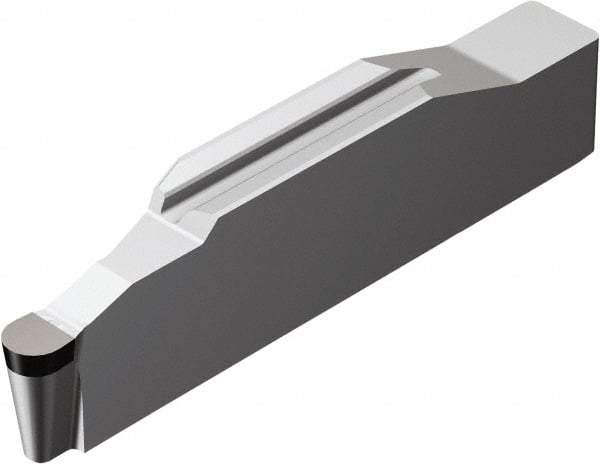

Sandvik Coromant - R123H1R1.5, CD10 Grade Polycrystalline Diamond Profiling Insert - Uncoated, 7° Relief Angle, 2mm Thick, 1mm Corner Radius
Item #: 49509177
Brand: Sandvik Coromant
Model #: 6256933
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Material | Polycrystalline Diamond |
| Insert Style | R123 |
| Insert Size | H1R1.5 |
| Manufacturer's Grade | CD10 |
| Thickness (mm) | 2.00 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Relief Angle | 7 |
| Coating | Uncoated |
| Insert Length (mm) | 25.05 |
| Insert Length (Decimal Inch) | 0.9862 |
| Chipbreaker | RS |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | CoroCut 1-2 |
| Maximum Depth of Cut (Decimal Inch) | 0.0315 |
| Insert Holding Method | Clamp |
