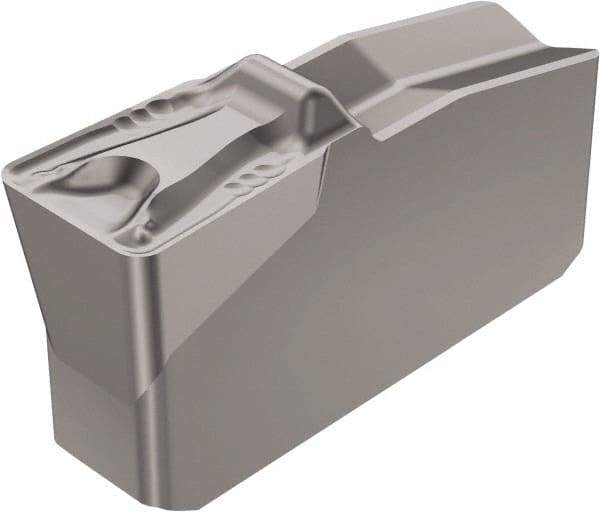

Sandvik Coromant - N151.240 5T Grade 525 Cermet Turning Insert - Uncoated, 8.11mm Thick, 1/32" Corner Radius
Item #: 49508807
Brand: Sandvik Coromant
Model #: 5738367
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 40 |
| Material | Cermet |
| Length (mm) | 7.05 |
| Length (Decimal Inch) | 0.2776 |
| Thickness (Decimal Inch) | 0.3191 |
| Thickness (mm) | 8.11 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 525 |
| Coating | Uncoated |
| Chip Breaker | 5T |
| Insert Length (Decimal Inch) | 0.2776 |
| ISO Number | N151.2-4008-40-5T 525 |
| Relief Angle | 7 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max Q-Cut |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Cutting Width (mm) | 4.00 |
