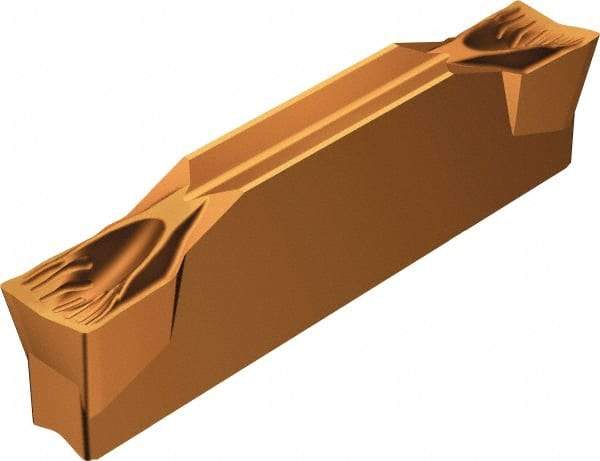

Sandvik Coromant - L123G2 CF Grade 1145, 3mm Cutting Width Carbide Cutoff Insert - 0.15mm Corner Radius, TiAlN+AlCr2O3 Finish
Item #: 49508658
Brand: Sandvik Coromant
Model #: 5732528
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | L123 |
| Insert Size | G2 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN+AlCr2O3 |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CF |
| Maximum Depth of Cut (mm) | 18.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.7205 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.005906 |
| Corner Radius (mm) | 0.15 |
| Insert Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | G |
