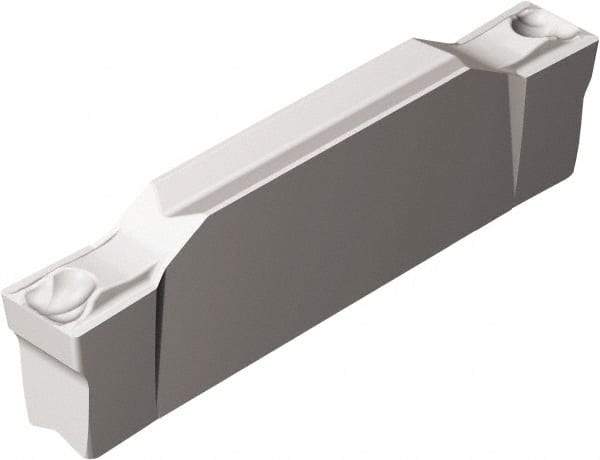

Sandvik Coromant - F2N123 GF Grade 525, 2.46mm Cutting Width Cermet Grooving Insert - 3/4" Max Depth of Cut, Neutral, Uncoated
Item #: 49508583
Brand: Sandvik Coromant
Model #: 5735883
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | F2 |
| Material | Cermet |
| Cutting Width (mm) | 2.46 |
| Cutting Width (Decimal Inch) | 0.0969 |
| Maximum Depth of Cut (Decimal Inch) | 0.7520 |
| Manufacturer's Grade | 525 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Relief Angle | 7 |
| Insert Seat Size | F |
| Chipbreaker | GF |
| Series | CoroCut 1-2 |
| ISO Number | N123F2-0246-0003-GF 525 |
| Insert Thickness (Decimal Inch) | 0.1693 |
