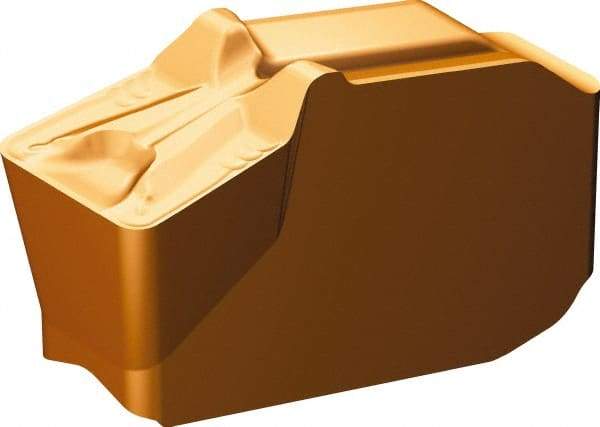

Sandvik Coromant - QD-N0500 TM Grade 1125 Carbide Turning Insert - TiCrAlN/TiAlN Finish, 5mm Thick, 1/64" Corner Radius
Item #: 49508179
Brand: Sandvik Coromant
Model #: 6582885
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD-N |
| Insert Size | 0500 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5512 |
| Thickness (Decimal Inch) | 0.1969 |
| Thickness (mm) | 5.00 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 1125 |
| Coating | TiCrAlN/TiAlN |
| Chip Breaker | TM |
| Insert Length (Decimal Inch) | 0.5512 |
| ISO Number | QD-NJ-0500-0004-TM 1125 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut QD |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Cutting Width (mm) | 5.00 |
