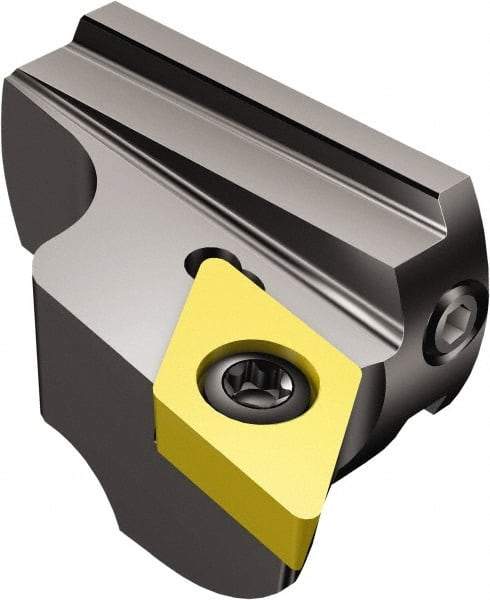

Sandvik Coromant - Left Hand Cut, Size 80, DCMT 11 T3 08 & DCMT 3(2.5)2 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 57mm Ctr to Cutting Edge, 45.7mm Head Length, Series CoroTurn 107
Item #: 49482151
Brand: Sandvik Coromant
Model #: 5764349
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 80 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 45.70 |
| Insert Style | DCMT 11 T3 08; DCMT 3(2.5)2 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 57.00 |
| Center to Cutting Edge (Decimal Inch) | 2.2441 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 45.70 |
| Maximum Hole Depth (Decimal Inch) | 1.7992 |
| Minimum Hole Diameter (mm) | 100.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.9370 |
| Neck Diameter (mm) | 80.00 |
| Neck Diameter (Decimal Inch) | 3.14961 |
| Complete Insert Compatibility | DCMT 3(2.5)2; DCMT 11 T3 08 |
| Head Connection Size | 80 |
