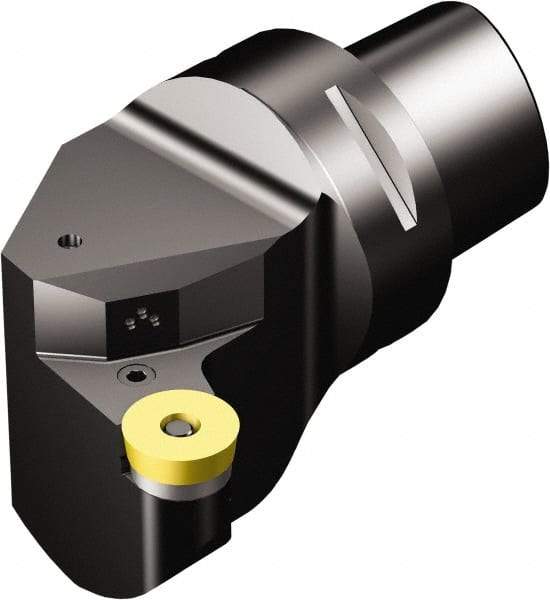

Sandvik Coromant - Right Hand Cut, Size C10, RCMX 32 09 00 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 70mm Ctr to Cutting Edge, 130mm Head Length, Through Coolant, Series T-Max P
Item #: 49481906
Brand: Sandvik Coromant
Model #: 6639539
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C10 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 130.00 |
| Insert Style | RCMX 32 09 00 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 70.00 |
| Center to Cutting Edge (Decimal Inch) | 2.7559 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 130.00 |
| Maximum Hole Depth (Decimal Inch) | 5.1181 |
| Minimum Hole Diameter (mm) | 500.00 |
| Minimum Hole Diameter (Decimal Inch) | 19.6850 |
| Neck Diameter (mm) | 100.00 |
| Neck Diameter (Decimal Inch) | 3.93701 |
| Complete Insert Compatibility | RCMX 32 09 00 |
| Head Connection Size | C10 |
