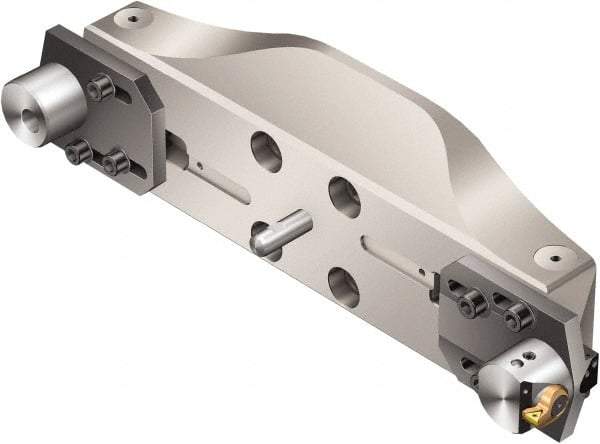

Sandvik Coromant - Right Hand Cut, 458mm Min Bore Diam, Size 40X Steel and Aluminium Modular Boring Cutting Unit Head - 4.8819" Max Bore Depth, Through Coolant, Compatible with TCMT 221, TCMT 11 03 04
Item #: 49478811
Brand: Sandvik Coromant
Model #: 6352249
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40X |
| Series Name | CoroBore XL |
| Minimum Bore Diameter (mm) | 458.00 |
| Minimum Bore Diameter (Decimal Inch) | 18.0315 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 124.00 |
| Maximum Bore Depth (Decimal Inch) | 4.8819 |
| Insert Style | TCMT 221; TCMT 11 03 04 |
| Head Length/Projection (mm) | 124.00 |
| Head Length/Projection (Decimal Inch) | 4.8819 |
| Toolholder Material | Steel and Aluminium |
| Through Coolant | Through Coolant |
| Connection Size | 40X |
| Maximum Bore Diameter (mm) | 555.00 |
| Maximum Bore Diameter (Decimal Inch) | 21.8504 |
| Head Diameter Excluding Insert (mm) | 40.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 1.5748 |
| Neck Diameter (mm) | 455.00 |
| Neck Diameter (Decimal Inch) | 17.9134 |
| Complete Insert Compatibility | TCMT 11 03 04; TCMT 221 |
| Modular Connection Size | 40X |
| Includes | Bridge; Cartridge; Counterweight; Fine boring head; Key; Slide; Slide extension set; Stop plate set |
