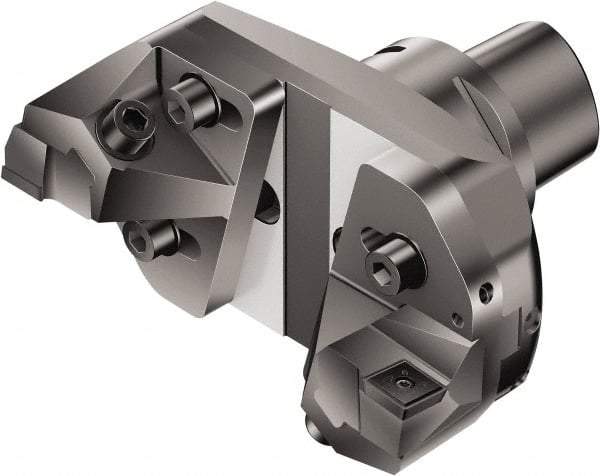

Sandvik Coromant - Right Hand Cut, 148mm Min Bore Diam, Size C10 Steel Modular Boring Cutting Unit Head - 5.0394" Max Bore Depth, Through Coolant, Compatible with 880-0906W08H-P-GM
Item #: 49476492
Brand: Sandvik Coromant
Model #: 6352150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C10 |
| Series Name | CoroBore XL |
| Minimum Bore Diameter (mm) | 148.00 |
| Minimum Bore Diameter (Decimal Inch) | 5.8268 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 128.00 |
| Maximum Bore Depth (Decimal Inch) | 5.0394 |
| Insert Style | 880-0906W08H-P-GM |
| Head Length/Projection (mm) | 128.00 |
| Head Length/Projection (Decimal Inch) | 5.0394 |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Connection Size | C10 |
| Maximum Bore Diameter (mm) | 200.00 |
| Maximum Bore Diameter (Decimal Inch) | 7.8740 |
| Head Diameter Excluding Insert (mm) | 100.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 3.9370 |
| Complete Insert Compatibility | 880-0906W08H-P-GM |
| Modular Connection Size | C10 |
| Includes | Adaptor; Cartridge; Key; Slide |
